TPM series ring die

Home Ring Dies TPM series ring die

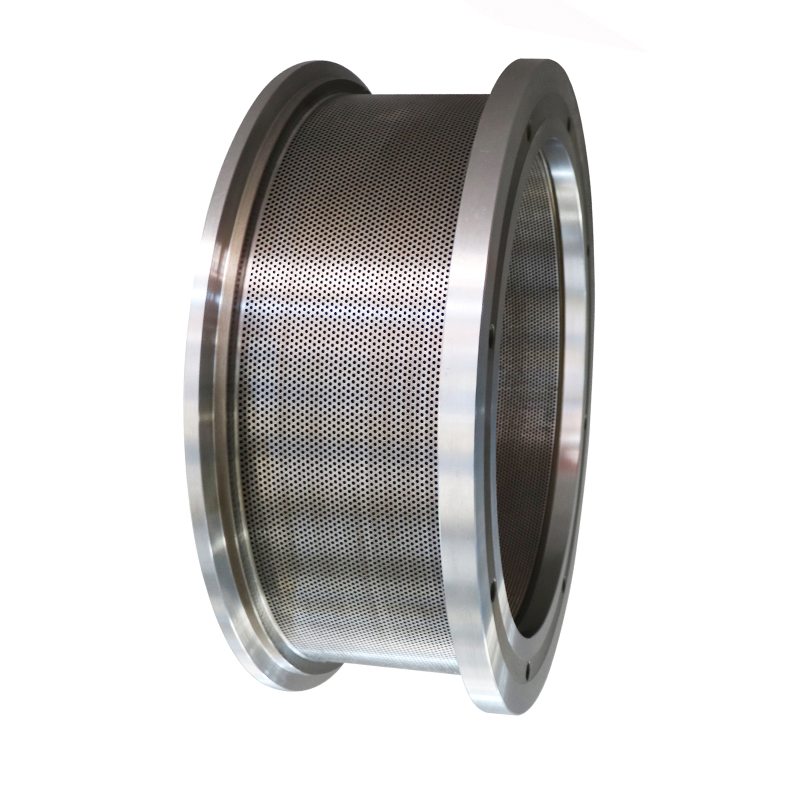

TPM series ring die
TPM series ring die TPM series ring die TPM series ring die

TPM series ring die

TPM pellet mill series ring die is made of high-quality alloy steel or high-chromium stainless steel (German standard X46cr13). It is processed by forging, cutting, drilling, heat treatment and other processes. Through strict production management and quality system, the hardness, die hole uniformity and die hole finish of the production ring die have reached very high quality.

Category: Ring Dies
Tags: pellet millring dieTPM
Request a Quote Today

Description

TPM series pellet mill ring die

1.Select high-quality raw materials, secondary steelmaking, degassing billet;

2.Ring die material: X46Cr13 / 4Cr13 (stainless steel), 42Crmo / 20CrMnTi (alloy steel) or other custom materials;

3.Imported gun drill and multi-station drill, one-time forming die hole, high-quality finish, production of feed, beautiful appearance and high output;

4.Select the combination of vacuum furnace and continuous quenching furnace to ensure long service life;

5.According to the principle and requirements of the customer to design compression ratio and strength;

6.Microscopic examination to ensure product quality;

42Crmo / 20CrMnTi alloy steel ring die processing technology:

Cutting→Forging→Normalizing→Roughing→Tempering→Finishing→Drilling (Expanding) Hole→Carburizing→Grinding→(Excluding Oxidation Layer) →Pressure Testing→(Phosphorus Passivation)→Coating Antirust Oil→Check and save options;

 X46Cr13 / 4Cr13 stainless steel ring die processing technology:

Cutting→Forging→Roughing→Normalizing→Finishing→Quenching and tempering→ › Finishing→Drilling hole→Nitriding→Polishing→Pressure test→ Coating resistance→Rusty oil→Check and save options;

S/NModelSize

OD*ID*overall   width*pad width -mm

Hole size

mm

1

TPM420570*420*190*215

1-12

2

TPM520677*520*300*205

1-12

The above dimensions are for reference only, please contact us for more models and dimensions
